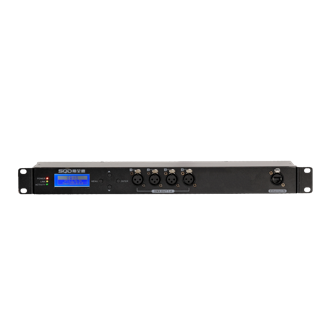

Plug and Play devices in the field of film and television lighting, lighting control network is the trend.Meet the DMX512 lighting control protocol and TCP / IP standards to high price DMX512 your easy access to the Ethernet network
Easy to use MAC-based search interface that can be used to set IP addresses, control parameters Number of other built-in software, hardware, dual watchdog, can ensure long-term stable operation Ethernet interface, the core of a reliable system for security and long-term operation
System WINDOWS DLL application support use the remote controland management of DMX512 signal output(1990 Edition) with two-way function, Net to the DMX512 transmission; alsoDMX512 to Net transfer.
LCD displays the status of the individual DMX port
LED Indicates the status of a network port
Standard DMX512, RDM, ArtNet, SCAN protocols are supported
POE power supply function(optional)
Chinese and English Display menu
IP address is manually 、Page setup
1 RJ45 port, 4 DMX input/output ports, each DMX512 port has a 2500V optoelectronic isolation interface, DMX priority setting (DMX port priority can be set)
Working ambient temperature:0℃-40℃
IP Rating:IP20
