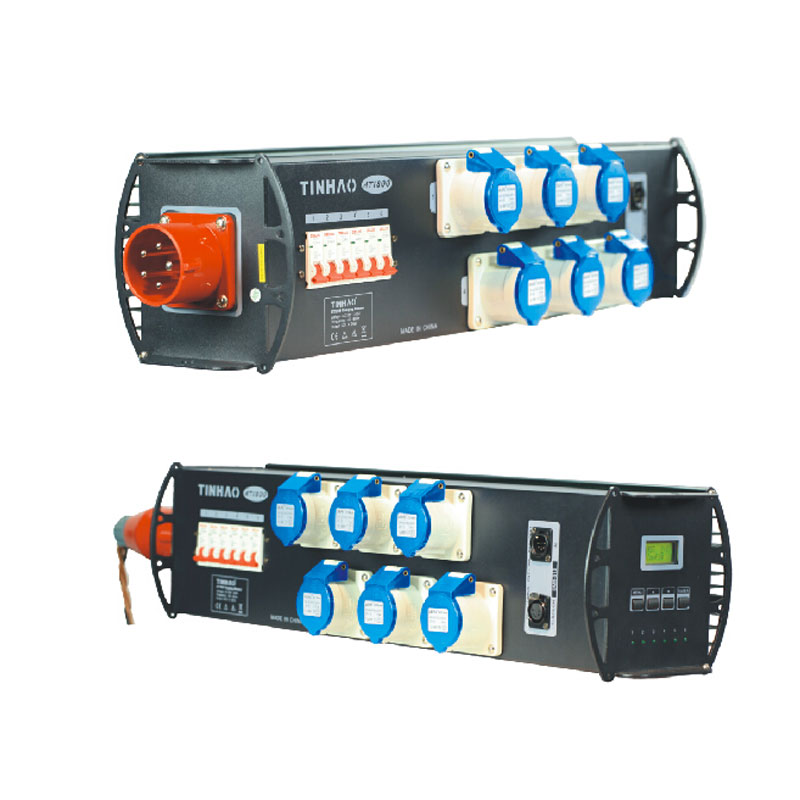

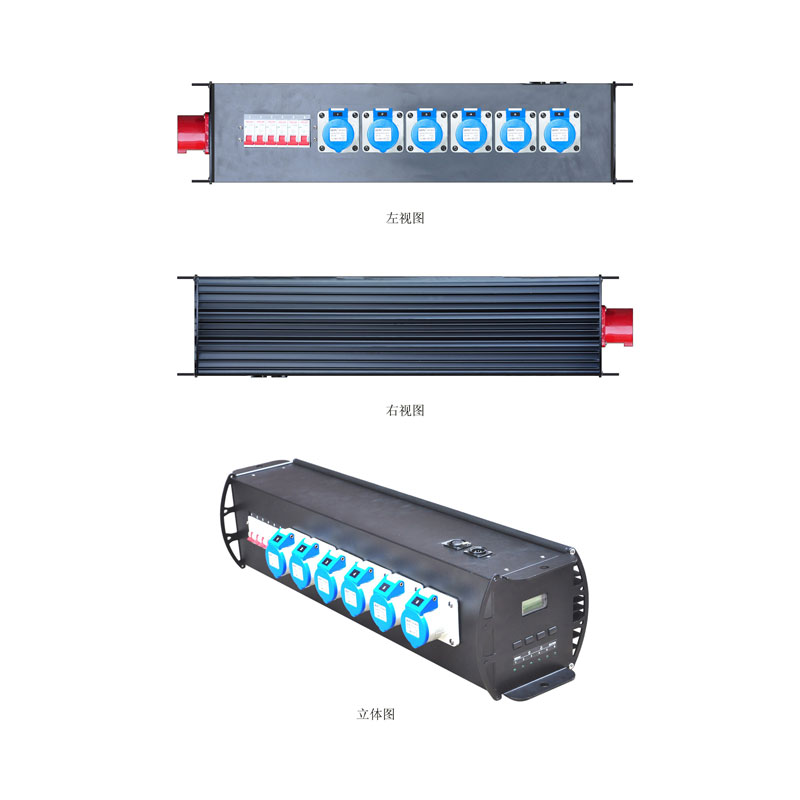

AT1800 Hanging Dimmer

AT1800 Hanging Dimmer

Technical parameter：

• LCD display

• DMX-512(1990) input signal

• 16bit 4096step fade accuracy for smooth dimming

• Keep the last level when No DMX signal

• Independent Curves for channels as Linear, S-curve,Square and User-Defined Curves

• Smart Cosmetic in Compact size

• Each dimmer output can be set as range of 110 to 250VAC

• Operation voltage: AC220V±10%

• Frequency: 50Hz-60Hz

• Rating current: 15A

• Rating power: 2KW+10%

• Minimum load: 0 W

• Leakage current protection :≤ 20mA

• Harmonics Distortion≤ 0.5%

• Noise ≤ 45dB

• Short Current Protection ≥ 200 times

• Dimming precision: ≥4000 step

• Efficiency: 98%

• Power factor: 0.95-0.99

• Working temperature: -10℃-45℃

• Working humidity: 5%-85%

• Cooling Mode: intelligent control

• Output load: resistive load and inductive load

• Output:6x3KW CEE,3x6KW CEE

• Dimensions:760×220×190mm（L×W×H）

• Weight:9.15kg

• Factory number: TB1600
