Adopt die-casting aluminum excellent heat dissipation performance, convenient and efficient disassembly and assembly. High light efficiency, good spot uniformity, no blue edge, imaging cutting edge sharp and clear without shadow, can be adjusted according to the needs of the spot. The control dimming precision is up to 60000 level, the dimming refresh frequency is up to 32K, can meet the requirements of high speed camera without flicker film level.

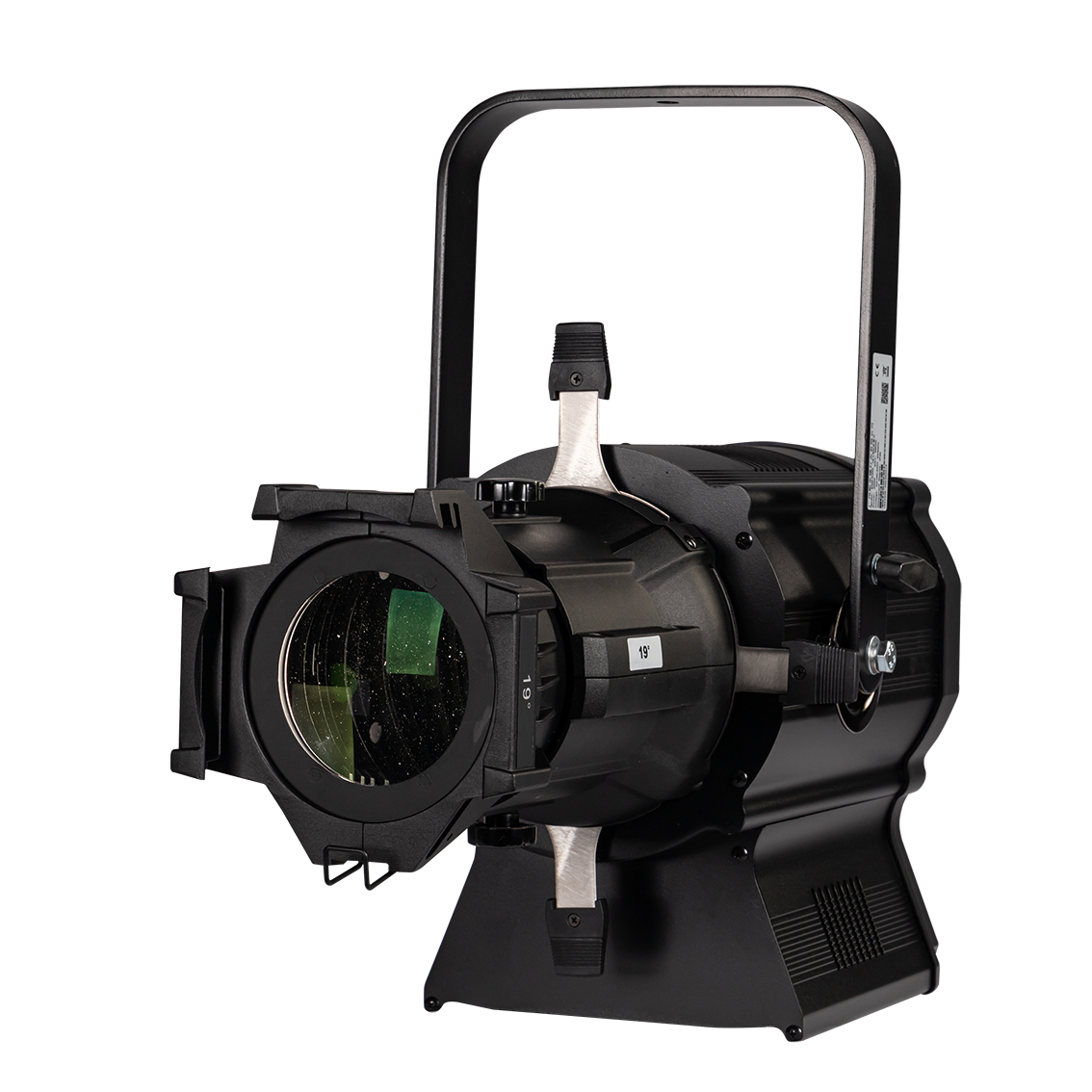

SQD-P200RC-19/26/36/50 Color LED Profile
Product Description:
Adopt die-casting aluminum excellent heat dissipation performance, convenient and efficient disassembly and assembly.
High light efficiency, good spot uniformity, no blue edge, imaging cutting edge sharp and clear without shadow, can be adjusted according to the needs of the spot.
The control dimming precision is up to 60000 level, the dimming refresh frequency is up to 32K, can meet the requirements of high speed camera without flicker film level.
Technical Parameters:
Rated voltage: AC100-240V, 50/60Hz
Light source: 200W 200W RGBW four in one LED
Power:300W
Color temperature: 2700K~7500K adjustable
Color rendering index: Ra≥93
R9≥90

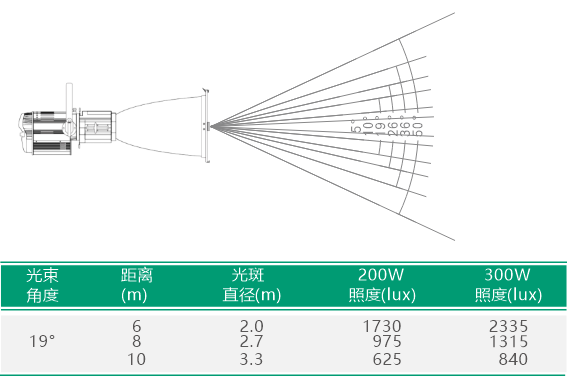

Optical Angle: 19°/26°/36°/50° optional
Dimming precision: 30000 /60000 class optional
Refresh frequency of dimming: 8K/32K optional
Dimming range: 0-100% linear dimming
DMX channel: 7CH
Control mode: DMX512 signal, with RDM control , key interface /2 knobs independent control (optional)
Drive mode: constant current drive
Optical lens: optical lens + combined lens group
Copper tube + aluminum fin blade radiator + silent fan
PF≥0.95
Lamp body size: 28×33×28cm,lens: 25×25×25cm
Net weight: 10.8kg
