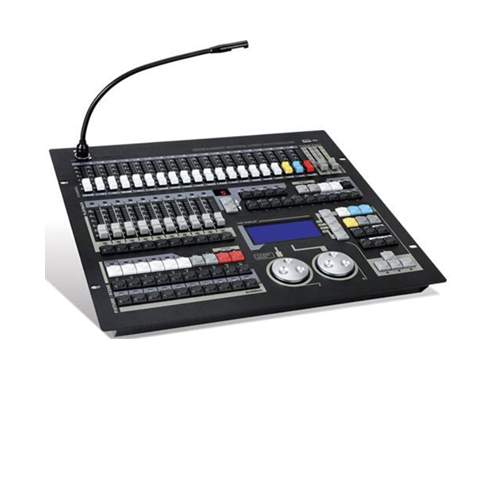

TH1024S Lighting console
Technical Parameters：
- Maximum 1024 DMX control channels, DMX512/1990 standard, optoelectronic isolation signal output port
- Maximum control of 100 computer lights or 100 dimming and LED lamps
- Maximum 42 control channels per lamp, using light library mode (R20 light library)
- With attribute channel push rod, convenient for users to control the lamp
- Store up to 300 replays in 30 pages
- With 40 directly selected scenes, can be overlaid output at the same time, can cooperate with the replay for the scene effects, can point control and latch
- Built-in graphics, convenient for users to control the effect of the computer lamp, picture circle, wave, aperture, brightness change and other effects, support graphics superposition, deformation, expansion and symmetry effects
- Program synchronization control: optional internal speed, external speed, music synchronization control
- Built-in 20 "light show" records, can achieve a one-click "light show" (internal time code, no PC required)
- MIDI interface, support master/slave machine and machine operation, support external MIDI time code trigger, to achieve external "light show" performance
- Large LCD display, Chinese/English menu operation mode
- With USB data interface, support U disk data backup and system upgrade
- Professional gooseneck working light (optional)
- Power supply: AC100-240V 50/60HZ 15W
- Dimensions: 482×440×108 mm
